Don't let cleanliness hold you back! The core logic and implementation plan for the design and planning of lithium battery workshops
Don't let cleanliness hold you back! The core logic and implementation plan for the design and planning of lithium battery workshops

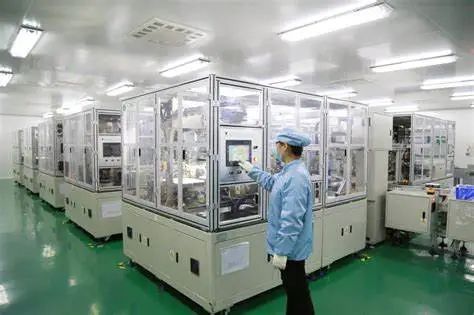

With the rapid development of the new energy vehicle industry, the demand for clean workshops for lithium batteries is also increasing. However, the construction and management of a clean workshop for lithium batteries is a very strict task that requires attention to many details. Now, let's introduce some professional knowledge about the construction of clean workshops for lithium batteries to everyone.
1. Design Plan
1. Air purification system: During the production process of lithium batteries, a large amount of dust and harmful gases are generated. Therefore, an efficient air purification system needs to be installed, including air filters, exhaust systems, and air purifiers, etc.
2. Temperature control system: The production of lithium batteries needs to be carried out within a certain temperature range, so a temperature control system needs to be installed, including air conditioning systems and heating systems, etc.
3. Floor materials: The floor of the clean workshop needs to be made of anti-static materials to prevent the impact of static electricity on the lithium battery production process.
4. Lighting System: Cleanrooms require adequate lighting to ensure the visibility and safety of the production process.
5. Equipment Layout: A clean workshop requires a reasonable equipment layout to ensure the smoothness and efficiency of the production process.
6. Personnel Entry and exit: Cleanrooms need to have dedicated personnel entry and exit points to ensure that the cleanliness is not contaminated by the outside world.
7. Fire Protection System: The clean workshop needs to be equipped with a fire protection system, including fire alarms, fire extinguishers and automatic sprinkler systems, etc., to ensure the safety of the production process.
2. Layout Rules
1. Cleanliness: Arrange equipment and working areas with the same cleanliness requirements together to ensure consistency and stability of cleanliness.
2. Safety: Separate the hazardous area from the safe area, set up safety passages and safety facilities to ensure the safety of the production process.
3. Personnel flow: Arrange personnel entrances and exits as well as personnel flow channels at appropriate locations to ensure the smoothness and safety of the production process.
4. Air Flow: According to the design requirements of the air purification system, the air inlet and outlet as well as the air flow channels should be reasonably arranged to ensure the stability and consistency of the air purification effect.
5. Equipment: Based on the frequency of use and importance of the equipment, the positions and spacings of the equipment should be reasonably arranged to ensure the efficiency and safety of the production process.
3. Construction Process
1. Determine the workshop layout and design plan: including the air purification system, temperature control system, floor materials, lighting system, equipment layout, personnel entrances and exits, fire protection system, etc.
2. Carry out the foundation construction of the workshop: including the construction of the floor, walls and ceiling, to ensure that the structure of the workshop is firm and flat.
3. Air purification system: including air filters, exhaust systems and air purifiers, etc., to ensure that the air quality in the workshop meets the requirements.
4. Temperature control system: including air conditioning system and heating system, etc., to ensure that the temperature inside the workshop meets the requirements.
5. Floor materials: Anti-static materials should be used to prevent the impact of static electricity on the lithium battery production process.
6. Lighting system: Ensure there is sufficient lighting in the workshop to guarantee the visibility and safety of the production process.
7. Installation of equipment: According to the equipment layout plan, install production equipment and workbenches, etc.
8. Install personnel access control and fire protection systems: Ensure safety within the workshop.
4. Precautions
1. Cleanliness management: In the clean workshop of lithium batteries, cleanliness management is of great significance. During the production process, it is essential to maintain the cleanliness of the workshop to ensure product quality. Therefore, the control of the workshop environment is of vital importance. Appropriate air purification equipment, such as high-efficiency air filters, air purifiers, and dust collectors, should be installed in the workshop to maintain its cleanliness.
2. Anti-static measures: In the clean workshop of lithium batteries, static electricity is a common problem. Therefore, some measures must be taken to prevent the generation of static electricity. First of all, the floor and walls in the workshop should be made of conductive materials to ensure that static electricity can dissipate in a timely manner. Secondly, employees working in the workshop should wear anti-static clothing and shoes to prevent the generation of static electricity.
3. Safety Management: In the clean workshop of lithium batteries, safety management is of great significance. Because lithium batteries have certain dangers, some measures need to be taken to ensure the safety of the production process. First of all, a dedicated safety area should be set up in the workshop to ensure the safety of employees. Secondly, smoke alarms and fire extinguishers should be installed in the workshop to deal with emergencies.
-
